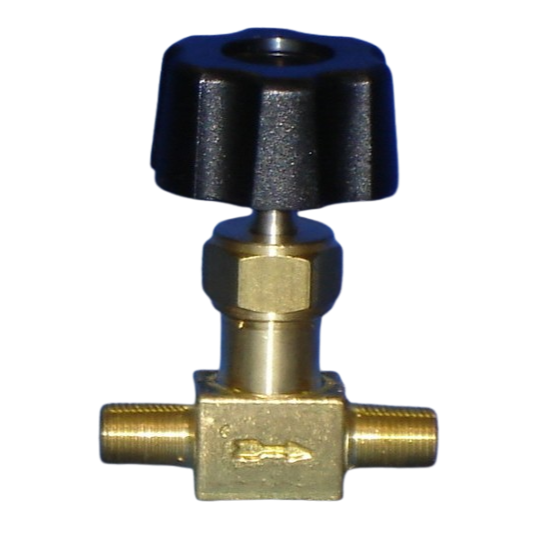

Brass Inline Valves

Pressure Rating 3,000 psi @ 70 degF
Temperature Range -40°F to +135°F with 6/6 Nylon Tip, -65°F to +300°F with Stainless Steel Stem
Body Material Forged brass
Diameter In./MM 1.25/32

View All Specifications

Our inline angle valves for cylinders are powerful enough to handle 3,000 psi at 70 degrees Fahrenheit. With a durable forged brass body, they weigh 4.2 ounces and feature an attractive black ABS handle and a fully enclosed Teflon packing gland. Each brass valve comes with your choice of matching brass stem with a 6/6 nylon tip or a 316 stainless steel stem with a precision ground vee tip.

Request a Quote

Specifications

Pressure Rating 3,000 psi @ 70 degF
Temperature Range -40°F to +135°F with 6/6 Nylon Tip, -65°F to +300°F with Stainless Steel Stem
Body Material Forged brass
Diameter In./MM 1.25/32
Length In./MM 3/76
Weight 4.2 ounces
Threads NPTF for gas seal
Handle Style Black ABS
Packing Gland Fully enclosed Teflon
Stem Options 316 Stainless Stem with Precision Ground Vee Tip, Brass Stem With 6/6 Nylon Tip
