Compliant Gas Cylinders
Non-Reactive Gas Cylinders

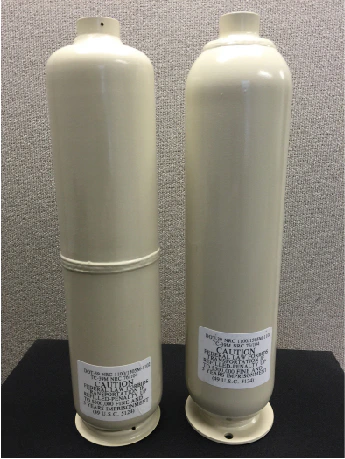

Sharpsville Container Corporation manufactures a wide range of single use, non-refillable, high pressure gas cylinders for use in non-reactive gas applications.
- Cylinders compliant with DOT 39, Transport Canada (TC) or TPED
- Two construction methods available – girth welded (M-Series) or straight side (T-Series)
- Made from carbon steel products
- Service pressures up to 1100 PSIG
- Size range up to 163 cubic inches (water capacity)
- Brass C-10 valve installed
- Standard tan powder coat finish, additional colors available upon request
- Applicable labeling applied
You Are Currently Viewing
Non-Reactive Gas Cylinders
-
-
.9L M-Series Non-Reactive Gas Cylinder
Water Volume Cu. In./ML 55/900Diameter In./MM 3.25/82.6Length In./MM 8.09/205.48Weight Lbs./Kgs 1.5/.7 -
1.5L M-Series Non-Reactive Gas Cylinder
Water Volume Cu. In./ML 94/1540Diameter In./MM 3.25/82.6Length In./MM 13.86/352.04Weight Lbs./Kgs 2.5/1.1 -
1.5L M-Series Non-Reactive Gas Cylinder (TPED Rated)
Water Volume Cu. In./ML 94/1540Diameter In./MM 3.25/82.6Length In./MM 13.86/352.04Weight Lbs./Kgs 2.5/1.1 -
1.5L T-Series Non-Reactive Gas Cylinder
Water Volume Cu. In./ML 92/1508Diameter In./MM 3.25/82.6Length In./MM 13.75/349.25Weight Lbs./Kgs 2.5/1.1 -
2.5L M-Series Non-Reactive Gas Cylinder
Water Volume Cu. In./ML 163/2670Diameter In./MM 3.25/82.6Length In./MM 14.70/373.38Weight Lbs./Kgs 5/2.3
