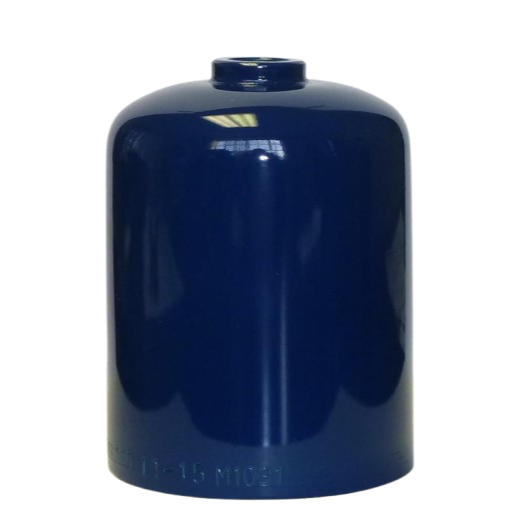

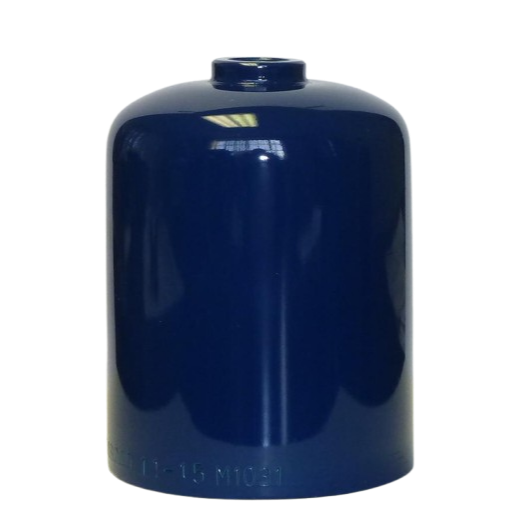

280ML Low-Pressure Gas Cylinder

Model: #EFB-20

Water Volume Cu. In./ML 17/280

Diameter In./MM 2.81/71.44

Length In./MM 3.88/98.43

Weight Lbs./Kgs 0.7/0.32

Sharpsville Container offers a line of carbon steel cylinders in refillable and disposable configurations. We make our gas cylinders from 1008/1010 cold rolled steel with copper brazed in a vacuum brazing furnace. Our cylinders are certified by the DOT-4B (This model is not available as DOT-39NRC 400/500).

Request a Quote

Specifications

Water Volume Cu. In./ML 17/280

Diameter In./MM 2.81/71.44

Length In./MM 3.88/98.43

Weight Lbs./Kgs 0.7/0.32

Spud Size 1/8″ or 1/4″ NPTF, 1/4 or 3/8 NGT

Body Material Carbon Steel

Pressure Rating 240 psig

Compliance DOT-4B-240
