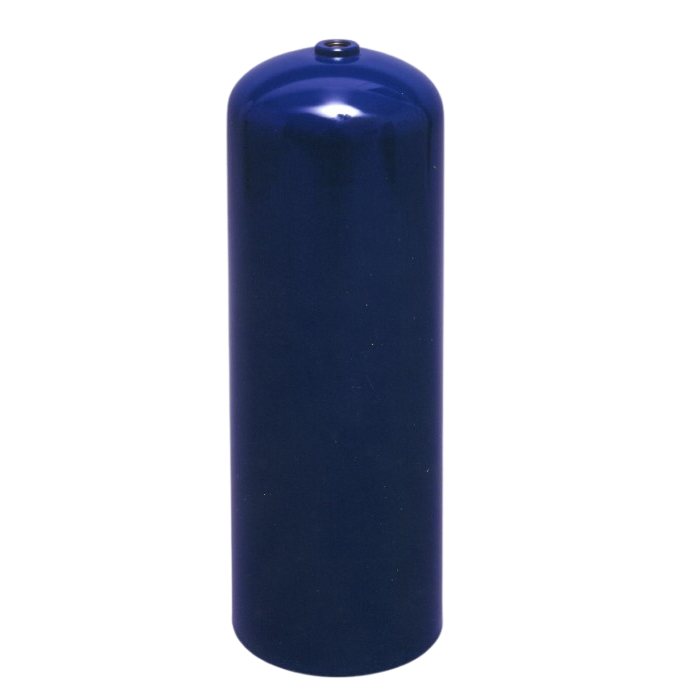

2.4L Low-Pressure Gas Cylinder

Specifications

Water Volume Cu. In./ML 146.5/2400

Diameter In./MM 4.25/108

Length In./MM 12.25/311.2

Weight Lbs./Kgs 3.25/1.47

Spud Size 1/8″ thru 3/4″ NPTF, 1/4 or 3/8 NGT

Body Material Carbon Steel

Pressure Rating 300 psig

Compliance DOT-4B-300, DOT39-NRC400/500
