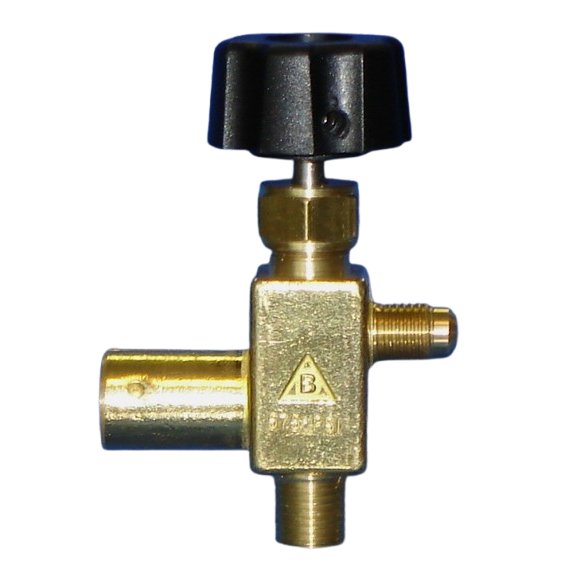

Brass Relief Valves

Pressure Rating Settings to Match Cylinder Used

Temperature Range -40°F to +135°F with 6/6 Nylon Tip, -65°F to +300°F with Stainless Steel Stem

Body Material Forged brass

Diameter In./MM 2.5/63.5

We also offer relief valves in 1/4″ M NPTF x 1/4″ and 3/8″ M NPTF x 1/4″ Deg SAE Flare Male configurations. These valves come with a forged brass body, fully enclosed Teflon packing gland and a choice between a 6/6 Nylon Tip or 316 Stainless Steel Stem with Precision Ground Vee Tip. Neoprene, Buna-N or Teflon relief seats available.

Request a Quote

Specifications

Pressure Rating Settings to Match Cylinder Used

Temperature Range -40°F to +135°F with 6/6 Nylon Tip, -65°F to +300°F with Stainless Steel Stem

Body Material Forged brass

Diameter In./MM 2.5/63.5

Length In./MM 3.5/89

Weight 7.2 ounces

Threads NPTF for gas seal

Handle Style Black ABS

Packing Gland Fully enclosed Teflon

Stem Options 316 Stainless Stem with Precision Ground Vee Tip, Brass Stem With 6/6 Nylon Tip

Available Sizes 1/4″ M x 1/4″ M Angle, 3/8″ M x 1/4" M Angle
